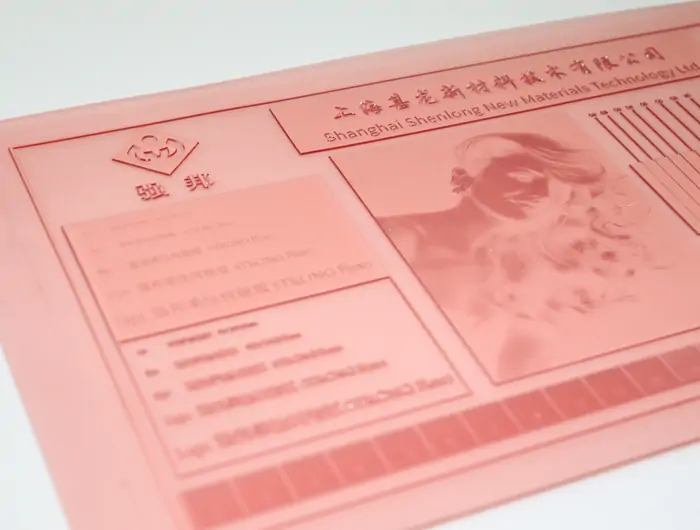

SF-DL Digital Flexo Plates

Low Tack, Reduced Detack
SF-DL is the digital sheet photopolymer specifically designed to address all direct print corrugated board requirements, which delivers higher quality print and increased productivity. SF-DL photopolymer resolves the sticky issue of the previous SF-DGT, which leads to less UV-C detac time or even no detac during the plate making process.
SF-DL Digital Flexo Plates
Key Features
Holds the finest detail without the need to back mask
Quick wash out
Requires minimum impression settings, giving good balance between solids and screens
Advantage

Superior printing quality with sharper images, more open intermediate depths, finer highlight dots and less dot gain, i.e. larger range of tonal values therefore improved contrast and produce flat top dots when adequate process equipment are used

High resilience and good resistance towards mechanical impacts deliver excellent durability

Increased productivity and data transfer without loss of quality due to digital workflow

Excellent ink transfer using water and alcohol-based inks

Cost effective and more environmentally friendly in processing, as no film is required

Less UV-C detac time is needed, or even no detac

Technical specifications
Thickness (mm/inch) Hardness (Shore Å) Total Range(%) Screen Ruling(LPI) Minimum Isolated Line Minimum Isolated Dot
2.84/0.112 43 2 – 95% 120 0.1mm 0.2mm
3.18/0.125 42 2 – 95% 120 0.2mm 0.5mm
3.94/0.155 40 2 – 95% 100 0.3mm 0.75mm
4.70/0.185 38 3 – 95% 80 0.3mm 0.75mm
6.35/0.250 38 3 – 95% 80 0.3mm 0.75mm



Recommended Processing Conditions
Thickness (mm/inch) Back Exposure (s) Main Exposure (mins) Wash out (mm/mins) Drying Time (h) Post Exposure (mins) Detack(mins)
2.84/0.112 35-50 10-15 120-140 2-2.5 5 0-3
3.18/0.125 40-60 10-15 100-130 2.5-3 5 0-3
3.94/0.155 75-90 10-15 100-130 3 5 0-3
4.70/0.185 90-120 10-15 70-100 3 5 0-3
6.35/0.250 120-200 10-15 50-90 3 5 0-3

*Run-Length varies with its printing conditions and imaging content
